Staybills® Components & Assembly

1. The Staybills® Stand

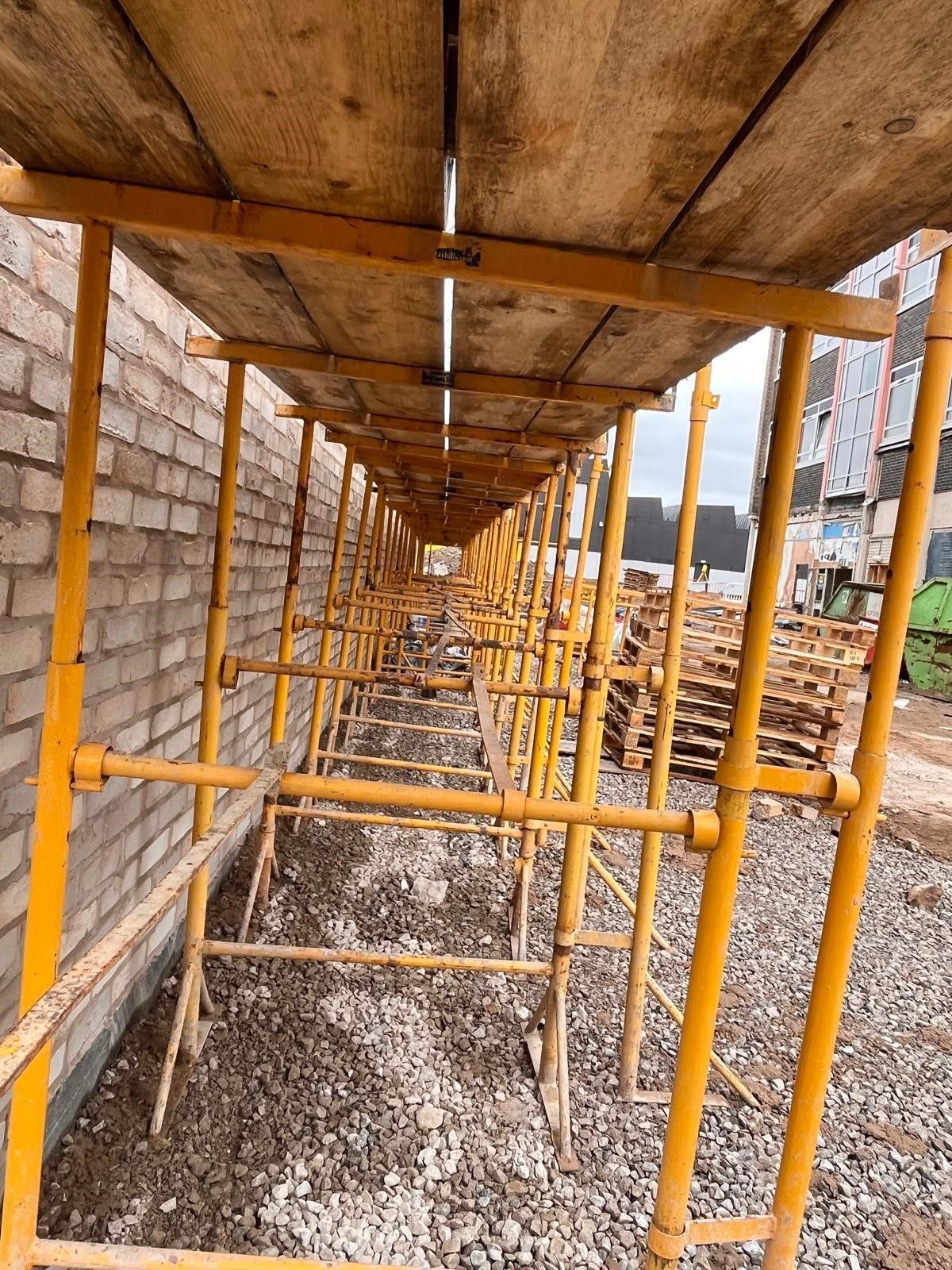

The trestle stand, also known as a ‘trestle’ or ‘bandstand’, incorporates a single or double stabiliser, space bar and pins. Small/Medium stands are 4-scaffold boards wide, whilst the large are 5-scaffold boards wide. The use of a double stabiliser stand allows a return or corner to be safely implemented.

Safe Working Load = 450kgs per stand.

2. Post with hook

This fits into the stabiliser of the Staybills® stand and supports the solid or hinged panels.

3. Solid Panel

A 1100mm high handrail, giving full steel mesh protection and a solid steel toe-board into one easy panel – no need for brick-guards.

4. Hinged Panel

Uses the same design as the solid panel yet incorporates a hinge which can be hooked open to allow safe loading/unloading whilst maintaining the integrity of the safety system. This allows ground level and platform level workers to work simultaneously, ensuring continued work output.

1. Ladder Restraint

The ladder restraint, designed with a ladder safety device to prevent the ladder movement, slots into the top of two chosen posts, providing a secure place to position a ladder for safe entry and exit to the platform.

2. Safety Gate

This is a spring loaded, self-closing gate allowing hands-free access whilst maintaining a closed, and therefore safe, working environment. It has a similar design to the solid/hinged panels, with full steel mesh and a solid mesh toe-board protection, and only opens inwards onto the platform.

3. H-Frame

This is placed horizontally across two Staybills® stands, where the ends of scaffold boards meet, giving anti-flip and anti-trip protection, maintaining a fully continuous and flat working platform.
